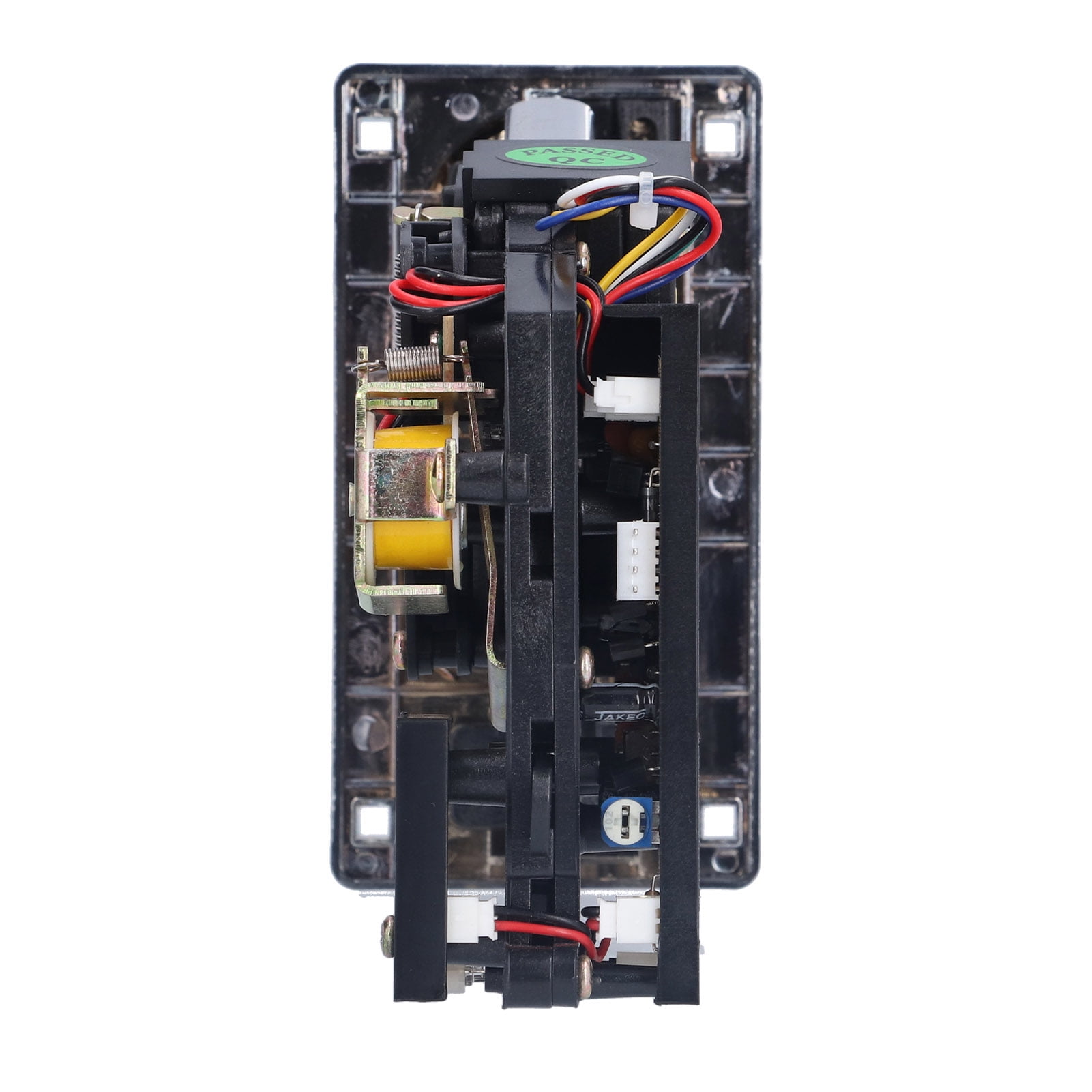

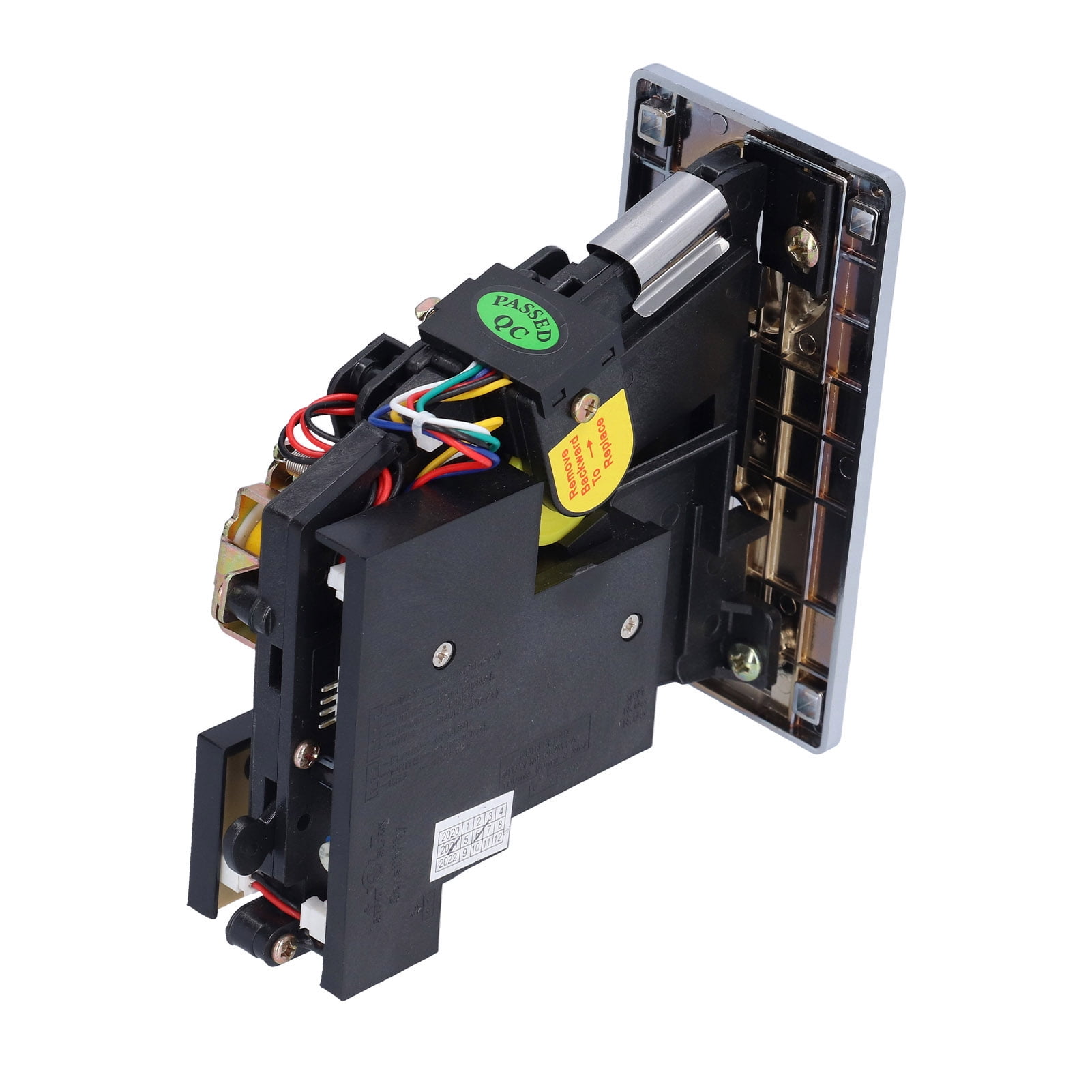

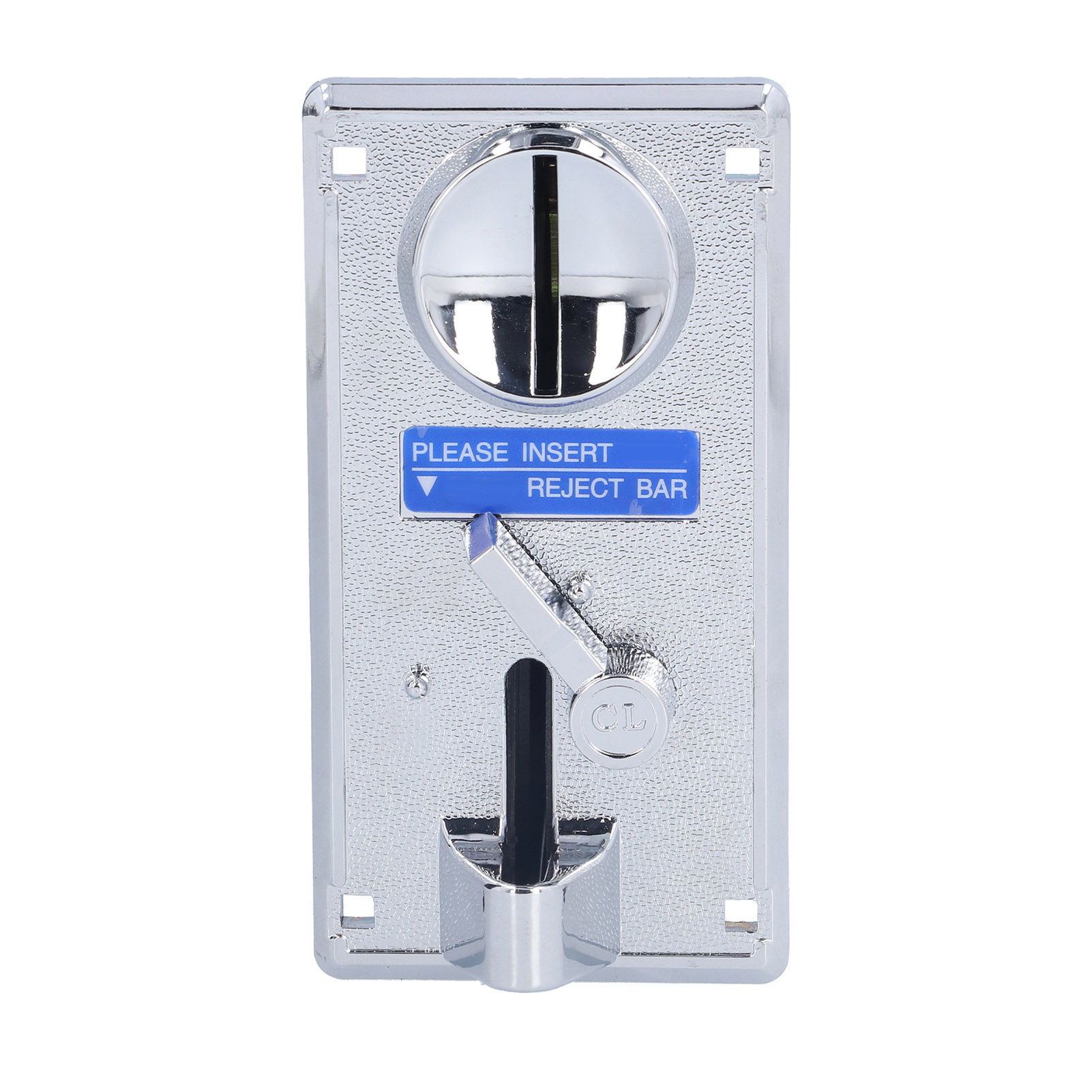

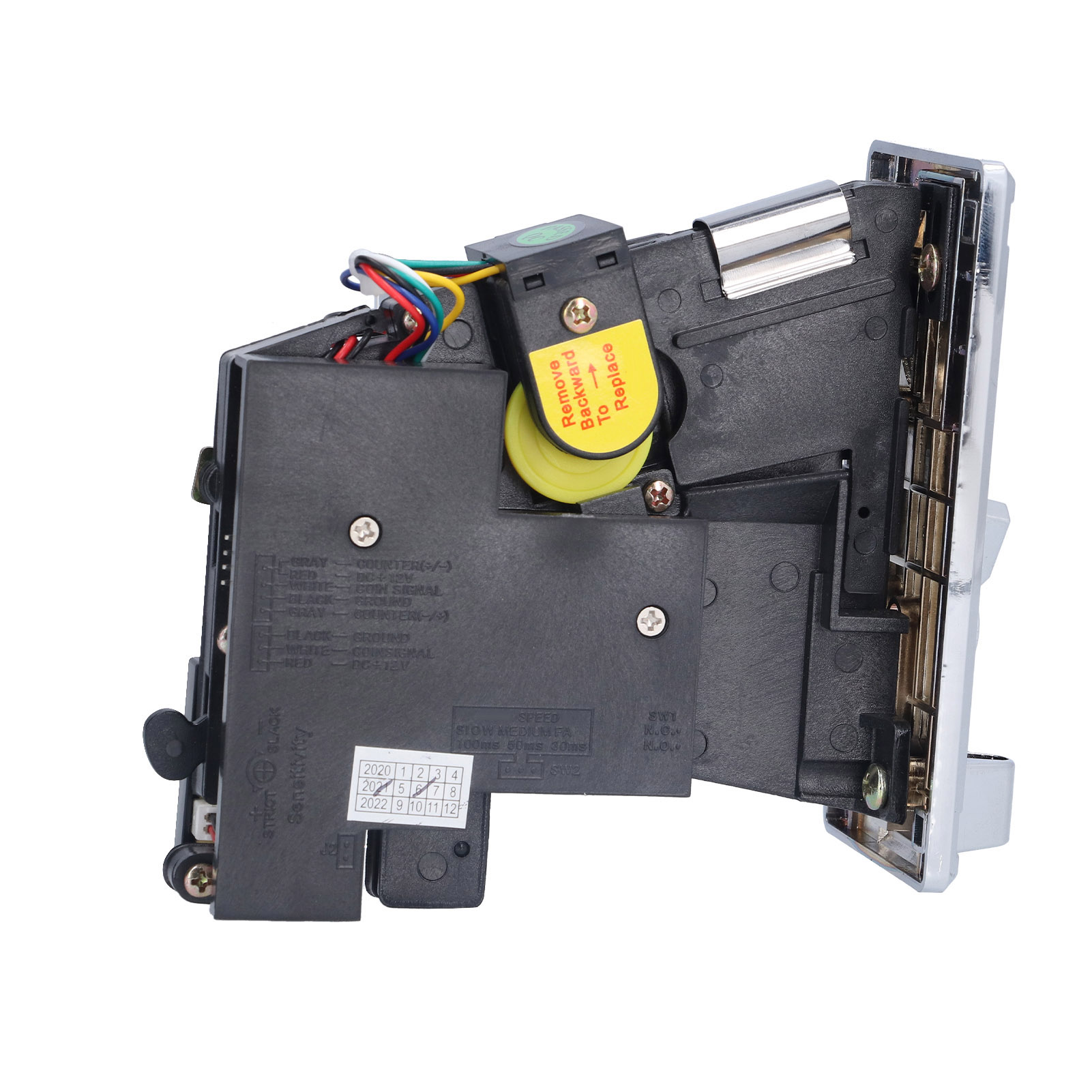

Coin Acceptor CPU Comparison Electronic Selector for Arcade Game Vending MachineSilver Gray

Feature: 1. Compare and choose according to the diameter, thickness and material of the coin, convenient and correct. 2. The electronic coin acceptor with simple clamping setting, no adjustment to do with it. 3. The coin selector for arcade game, suitable for all kinds of coins , free of customization. 4. The electronic coin acceptor with three sets of anti‑fishing electric eye counting devices. 5. The electronic coin acceptor can install code table and be connected for easy connection Specification: Item Type: Coin Acceptor Material: Plastic + Hardware Applicable Coin Diameter: 18mm-31mm/0.7-1.2in Applicable Coin Thickness: 1.2mm-3.0mm/0.04-0.1in Working Temperature: -15℃-+75℃ Working Voltage: DC12±20% How to Use: 1. Please remove the plastic coin in the coin holder first, and replace it with the coin to be used 2. Loosen the screw on the back of the coin slot, and adjust the fixing piece on the back of the coin slot according to the diameter of the coin to be used, so as to avoid mistaken throwing by those with too large diameter 3. To meet the needs of the board of the game machine, select the switch between N.O. (normally open) and N.C. (normally closed); except for the big Mary and special machines that have been indicated, most people generally use N.O. (normally open) 4. To meet the needs of the board of the game machine, select the COIN signal length/speed three‑stage switch (TIMESWITCH): 25ms is a short fast signal, suitable for fast coin machines such as for Damari, 45ms is a medium fast signal, Suitable for general machines (if non‑special standard machines can be switched to this section), 65ms is a long slow signal, suitable for entertainment machines that do not require fast coin insertion 5. The VR knob is used to adjust the sensitivity of coin screening, clockwise adjustment (‑), the acceptance range of coin tolerance is larger, counterclockwise adjustment (+), the tolerance range of coin tolerance is smaller, that is, the screening is stricter . 6. See instructions for wiring Package List: 1 x Coin Acceptor 4 x Screw 4 x Nut 1 x 4Pin Cable

• 1. Compare and choose according to the diameter, thickness and material of the coin, convenient and correct.
• 2. The electronic coin acceptor with simple clamping setting, no adjustment to do with it.
• 3. The coin selector for arcade game, suitable for all kinds of coins , free of customization.
• 4. The electronic coin acceptor with three sets of anti‑fishing electric eye counting devices.
• 5. The electronic coin acceptor can install code table and be connected for easy connection
